RLUM-B031X-1D

Bitzer Condensing Unit

R22

Chiller Application

Qc (KW): 6.2

Pi (KW): 3.4

RLUM-B031X-1D

Condenser Model 1D

Fan

Oty 1

Diameter ( mm ) 450

Air Flow ( m³/h ) 7080

Electrical

Supply 380-400V/3Ph/50Hz

Power Input For Each Fan ( W ) 480

Condenser Coil

Internal Volume ( L ) 4.6

Heat Transfer Area ( m² ) 29.5

Headers

Inlet (inch) 3/4

Outlet (inch) 5/8

Condenser

784 mm 730 mm

Condenser

286 mm 610 mm 930 mm

Compressor Model 2DES-3-40S

Technical Specifications

Weight 77 kg

Displacement ( 1450 RPM 50Hz ) 13,42 m3/h

Max. pressure ( LP/HP ) 19 / 32bar

Connection suction line 22 mm - 7/8''

Connection discharge line 16 mm - 5/8''

Motor version 1

Motor voltage 380-420V Y-3-50Hz

Max operating current 8.6 A

No. of cylinder x bore x stroke 2 x 50 mm x 39,3 mm

Max. Power input 4.6 kW

Crankcase heater 120 W PTC (Option)

Oil Type B5.2 (Option)

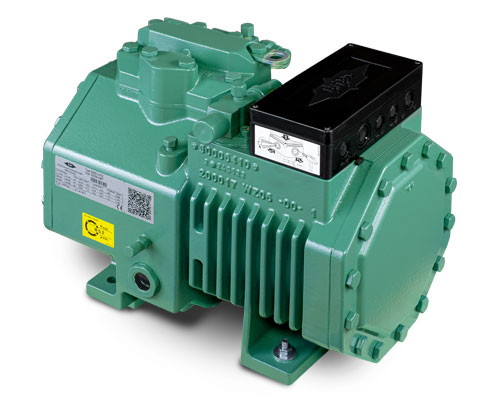

Compressor
