RLUM-B060X-2A

Bitzer Condensing Unit

R22

Chiller Application

Qc (KW): 10.7

Pi (KW): 6.0

RLUM-B060X-2A

Condenser Model 2A

Fan

Oty 2

Diameter ( mm ) 450

Air Flow ( m³/h ) 14160

Electrical

Supply 380-400V/3Ph/50Hz

Power Input For Each Fan ( W ) 480

Condenser Coil

Internal Volume ( L ) 6.7

Heat Transfer Area ( m² ) 37.4

Headers

Inlet (inch) 1 1/8

Outlet (inch) 7/8

Condenser

1444 mm 730 mm

Condenser

306 mm 610 mm 1000 mm

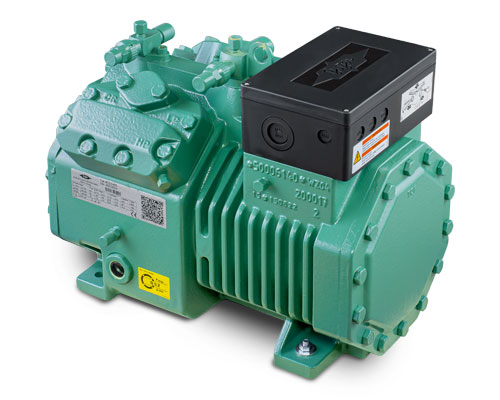

Compressor Model 4EES-6-40S

Technical Specifications

Weight 95 kg

Displacement ( 1450 RPM 50Hz ) 22,72 m3/h

Max. pressure ( LP/HP ) 19 / 32bar

Connection suction line 28 mm - 1 1/8''

Connection discharge line 16 mm - 5/8''

Motor version 1

Motor voltage 380-420V Y-3-50Hz

Max operating current 13.6 A

No. of cylinder x bore x stroke 4 x 46 mm x 39,3 mm

Max. Power input 7.6 kW

Crankcase heater 120 W PTC (Option)

Oil Type B5.2 (Option)

Compressor
