RLUM-B100X-2D

Bitzer Condensing Unit
R22
Chiller Application
Qc (KW): 16.9
Pi (KW): 8.6
RLUM-B100X-2D
Condenser Model 2D
Fan
Oty 2
Diameter ( mm ) 500
Air Flow ( m³/h ) 18390
Electrical
Supply 380-400V/3Ph/50Hz
Power Input For Each Fan ( W ) 720
Condenser Coil
Internal Volume ( L ) 12.8
Heat Transfer Area ( m² ) 72.0
Headers
Inlet (inch) 1 3/8
Outlet (inch) 1 1/8
Condenser 1644 mm 920 mm
Condenser 306 mm 760 mm 1075 mm
Compressor Model 4VES-10-40P
Technical Specifications
Weight 146 kg
Displacement ( 1450 RPM 50Hz ) 34,73 m3/h
Max. pressure ( LP/HP ) 19 / 32 bar
Connection suction line 28 mm - 1 1/8''
Connection discharge line 22 mm - 7/8''
Motor version 1
Motor voltage 380-420V PW-3-50Hz
Max operating current 19.9 A
No. of cylinder x bore x stroke 4 x 55 mm x 42 mm
Max. Power input 12.0 kW
Crankcase heater 140 W PTC (Option)
Oil Type B5.2 (Option)

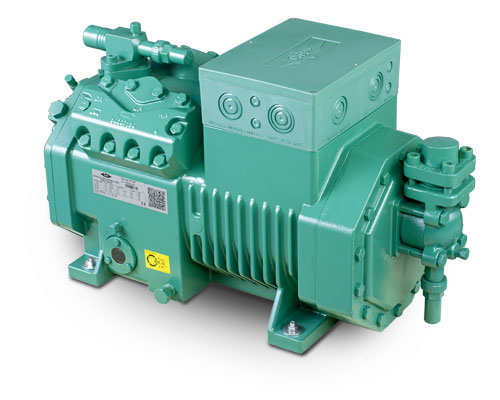

Compressor
