RLUM-B600X-6E

Bitzer Condensing Unit

R22

Chiller Application

Qc (KW): 90.7

Pi (KW): 49.2

RLUM-B600X-6E

Condenser Model 6E

Fan

Oty 6

Diameter ( mm ) 630

Air Flow ( m³/h ) 83020

Electrical

Supply 380-400V/3Ph/50Hz

Power Input For Each Fan ( W ) 1250

Condenser Coil

Internal Volume ( L ) 61.8

Heat Transfer Area ( m² ) 410.0

Headers

Inlet (inch) 2 1/8

Outlet (inch) 1 5/8

Condenser

3024 mm 2050 mm

Condenser

370 mm 1910 mm 1250 mm

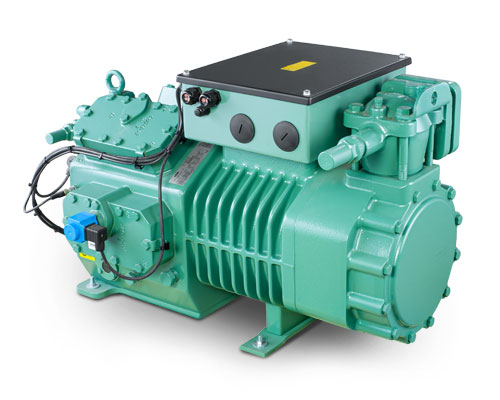

Compressor Model 8GE-60-40P

Technical Specifications

Weight 352 kg

Displacement ( 1450 RPM 50Hz ) 185 m³/h

Max. pressure ( LP/HP ) 19 / 28 bar

Connection suction line 76 mm - 3 1/8''

Connection discharge line 42 mm - 1 5/8''

Motor version 1

Motor voltage 380-420V PW-3-50Hz

Max operating current 113.0 A

No. of cylinder x bore x stroke 8 x 75 mm x 60 mm

Max. Power input 63.0 kW

Crankcase heater 140 W (Option)

Oil Type B5.2 (Option)

Compressor
