rime Condensing Unit
with BITZER Compressor

RLUB-D080Y-2CS (60Hz)

R404A

Blast Freezer Application

Qc (KW): 9.2

Pi (KW): 10.4

Condenser Model 2CS

Fan

Oty 2

Diameter ( mm ) 500

Air Flow ( m³/h ) 20000

Electrical

Supply 380-400V/3Ph/60Hz

Power Input For Each Fan ( W ) 1010

Condenser Coil

Internal Volume ( L ) 12.8

Heat Transfer Area ( m² ) 86.0

Headers

Inlet (inch) 1 3/8

Outlet (inch) 1 1/8

1644 mm 920 mm

306 mm 760 mm 1075 mm

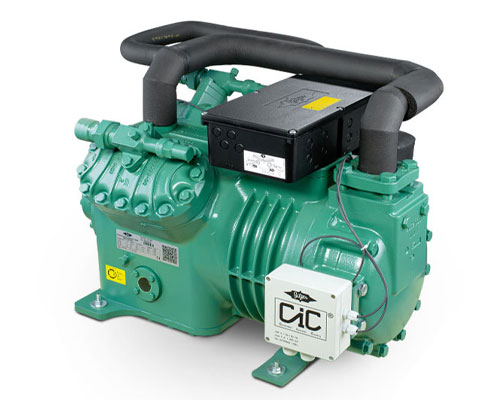

Compressor Model S4N-8.2Y-20D

Technical Specifications

Weight 141 kg

Displacement ( 1450 RPM 50Hz ) 28.00 / 17.90 m³/h

Max. pressure ( LP/HP ) 19 / 19 / 28 bar

Connection suction line 28 mm - 1 1/8''

Connection discharge line 22 mm - 7/8''

Motor version -

Motor voltage 360-400V Y-3-60Hz

Max operating current 22.0 A

No. of cylinder x bore x stroke 4 x 60/ 48 mm x 57 mm

Max. Power input 11.7 kW

Crankcase heater 100 W (Option)

Oil Type BSE32 (Standard)
