rime Condensing Unit
with BITZER Compressor

RLUB-D120Y-2F (50Hz)

R404A

Blast Freezer Application

Qc (KW): 12.2

Pi (KW): 12.8

Condenser Model 2F

Fan

Oty 2

Diameter ( mm ) 560

Air Flow ( m³/h ) 25210

Electrical

Supply 380-420V/3Ph/50Hz

Power Input For Each Fan ( W ) 1160

Condenser Coil

Internal Volume ( L ) 16.2

Heat Transfer Area ( m² ) 110.4

Headers

Inlet (inch) 1 3/8

Outlet (inch) 1 1/8

1863 mm 1028 mm

286 mm 862 mm 1110 mm

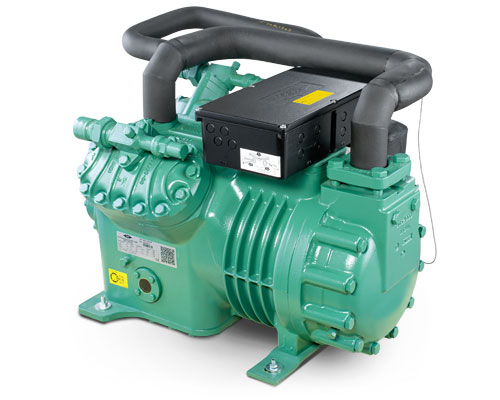

Compressor Model S4G-12.2Y-40P

Technical Specifications

Weight 180 kg

Displacement ( 1450 RPM 50Hz ) 42.30 / 27.00 m³/h

Max. pressure ( LP/HP ) 19 / 19 / 28 bar

Connection suction line 35 mm - 1 3/8''

Connection discharge line 28 mm - 1 1/8''

Motor version -

Motor voltage 380-420V PW-3-50Hz

Max operating current 24.0 A

No. of cylinder x bore x stroke 4 x 75/ 60 mm x 55 mm

Max. Power input 13.8 kW

Crankcase heater 140 W (Option)

Oil Type BSE32 (Standard)
