rime Condensing Unit
with BITZER Compressor

RLUM-B005Y-1AS (60Hz)

R404A

Chiller Application

Qc (KW): 1.8

Pi (KW): 1.4

RLUM-B005Y-1AS

Condenser Model 1AS

Fan

Oty 1

Diameter ( mm ) 350

Air Flow ( m³/h ) 3320

Electrical

Supply 380-400V/3Ph/60Hz

Power Input For Each Fan ( W ) 215

Condenser Coil

Internal Volume ( L ) 1.5

Heat Transfer Area ( m² ) 9.5

Headers

Inlet (inch) 5/8

Outlet (inch) 1/2

Condenser

630 mm 710 mm

Condenser

216 mm 590 mm 850 mm

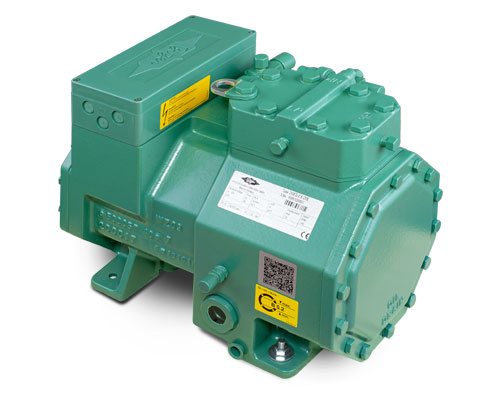

Compressor Model 2KES-05Y-20D

Technical Specifications

Weight 46 kg

Displacement ( 1450 RPM 50Hz ) 4,06 m³/h

Max. pressure ( LP/HP ) 19 / 32 bar

Connection suction line 16 mm - 5/8''

Connection discharge line 12 mm - 1/2''

Motor version 1

Motor voltage 360-400V Y-3-60Hz

Max operating current 3.6 A

No. of cylinder x bore x stroke 2 x 30 mm x 33 mm

Max. Power input 1.8 kW

Crankcase heater 60 W PTC (Option)

Oil Type BSE32 (Standard)

Compressor
